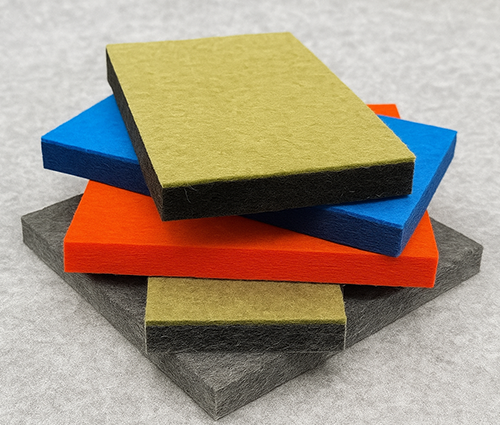

ICHOS Heathered & Flat Acoustic Laminated Felt Panels

ICHOS is a new revolution in color and acoustical material pairing the high-performance acoustics of ARKETA a with the beauty and soft touch of our SATIS acoustic felt layers.

ICHOS create unlimited color and texture combinations for all your projects. All materials are made here in Türkiye using recycled raw materials.

Key Features

ACOUSTİC

CLASSÉ AU FEU

ISOLATION

RÉSISTANT

RECYCLÉ

ECO-FRIENDLY

TACTISABLE

IMPRIMABLE

POIDS PLUME

SANS COV

ANTIBACTERIEN

FACILE À NETTOYER

Spécifications

Composition
60% Polyester recyclé (PET) (100% Pes)

Dimensions
Max. Width: 1500mm

Épaisseur et poids

6mm ( ±0,5 mm) 1300 g/m² + 200 g/m² (± 10%)
9mm ( ±0,5 mm) 1600 g/m² + 200 g/m² (± 10%)
12mm ( ±0,5 mm) 1800 g/m² + 200 g/m² (± 10%)
9mm ( ±0,5 mm) 1600 g/m² + 200 g/m² + 200 g/m² (± 10%) Double
12mm ( ±0,5 mm) 1800 g/m² + 200 g/m² + 200 g/m² (± 10%) Double

Acoustique
NRC: up to 0.64 (subject to mounting conditions)

Fire Test Standards
EN 1021 – 1 (cigarette )
EN 13501 – 1 (SBI) Adhered Class B-s1,d0

Light Fastness
4+ (ISO 105 – B02 )

Environnement
Sans émission de COV, sans formaldéhyde et sans phénol
OEKO-TEX Classe 1, sans phtalates

General
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.

Documentation

Product

Brochure

Télécharger

Acoustics

6mm ( ±0,5 mm) 1300 g/m² + 200 g/m² (± 10%)

Preparing

9mm ( ±0,5 mm) 1600 g/m² + 200 g/m² (± 10%)

Preparing

12mm ( ±0,5 mm) 1800 g/m² + 200 g/m² + 200 g/m² (± 10%) Double

Preparing

Fire Test Data

6mm ( ±0,5 mm) 1300 g/m² + 200 g/m² (± 10%)

Télécharger

9mm ( ±0,5 mm) 1600 g/m² + 200 g/m² (± 10%)

Télécharger

12mm ( ±0,5 mm) 1800 g/m² + 200 g/m² + 200 g/m² (± 10%) Double

Télécharger

Environnement

OEKO-TEX Class 1

Télécharger

Formaldehit ISO14184-1:2011 / EKOTEKS 54

Télécharger

Product Care Instructions

Handling: Before using our products, ensure your hands are clean and free of oils. We recommend wearing gloves to prevent the transfer of oils or contaminants.

Cleaning:

Dust: Apply compressed air or vacuum with light pressure.

Stain: Apply a small amount of warm soapy water for stain cleaning and dry. use a soap that is safe for polyester. For thorough cleaning, disassemble the product and steam clean. Ensure the steam temperature does not exceed 118°C.
