3D Deep Acoustic PET Felt Tiles

The 3D Deep Tiles Panel Collection offers decorative, high-performance acoustic solutions for interior spaces, achieving up to Class A sound absorption.
With two distinctive 3D designs, multiple size options, and a wide colour range, the collection allows flexible and expressive design applications.
The panels are lightweight, semi-rigid, and pin-receptive, enabling easy installation and reconfiguration.
Their velour vertiface finish provides a refined, high-quality appearance, while smart mounting options allow quick colour changes and adaptable layouts over time.

Product Sheet

3D Wall Tiles Models

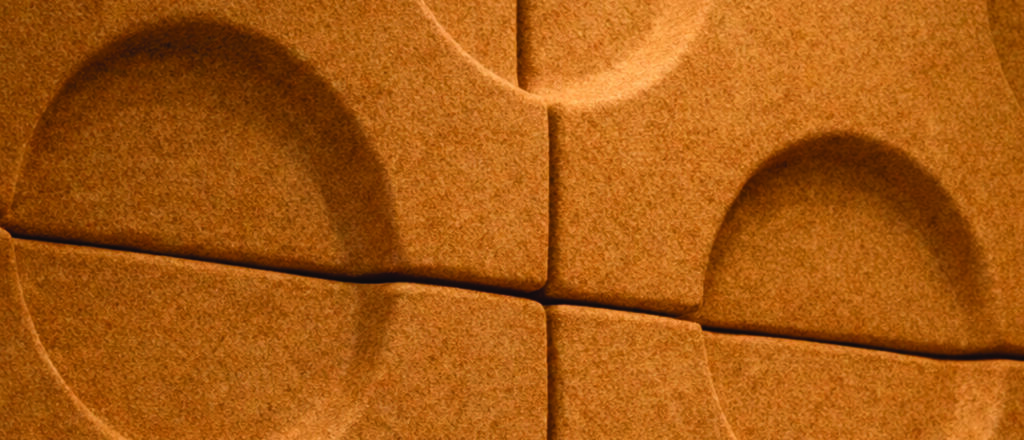

MOONBASE

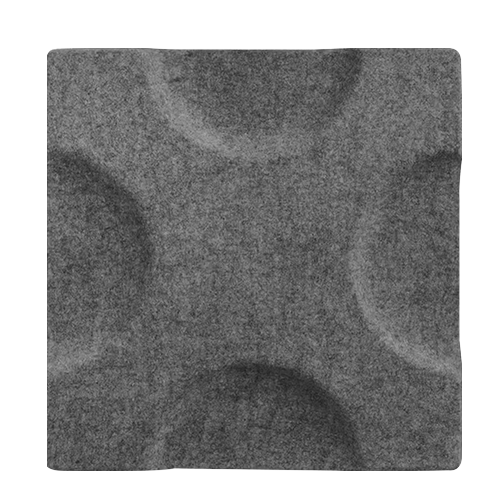

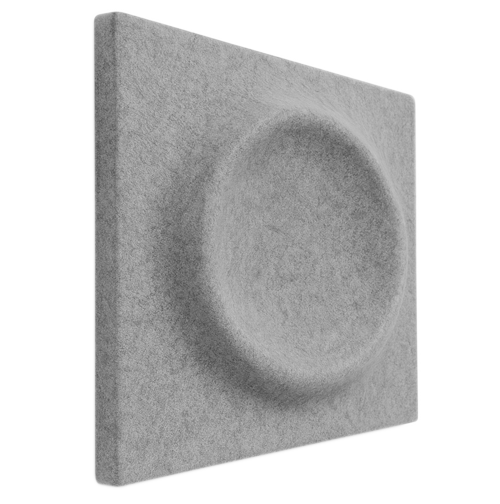

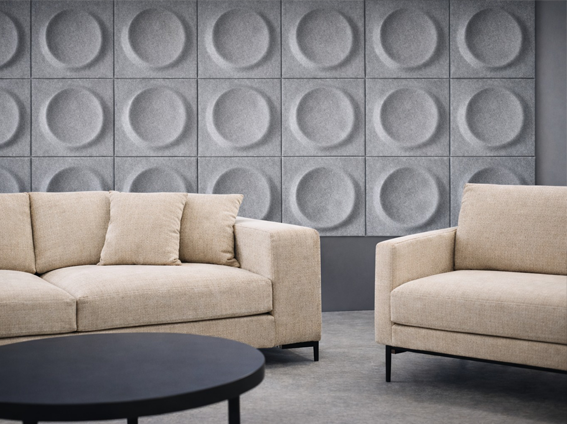

CAP

Acoustic Properties

Mounting
Method

NRC

αw

Directly on the wall

0.80

0.70

Directly on the wall + desity felt

1.00

NRC= Noise reduction coefficent
αw= Sound absorption coefficent

Custom
Acoustic
Solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose Felt Vibe as your new creative partner.

Specifications

COMPOSITION

ARKETA: 60% Recyled Polyester (PET) (100% Pes)
ARKETA ECOCO: %100 Recyled Polyester

LenGtH x WIDtH x HeIGHt

600mm x 600mm x 70mm

WeIGHt & WeIGHt

ARKETA 12mm (±0.5mm) 2400 g/m² (±10)
ARKETA ECOCO 12mm (±0.5mm) 2400 g/m² (±10)
ICHOS 12mm (±0.5mm) 2200 + 200 g/m² (±10)
PRINT FELT 12mm (±0.5mm) 2200 + 200 g/m² (±10)

ACoUStIC

NRC: 0.80 directly on the wall
NRC: 1.00 directly on the wall + density felt

FIre retArDAnt

EN 1021 – 1 (cigarette)
EN 13501-1 (SBI) Adhered Class B-s1,d0

enVIronment

Non VOCs emission formaldehyde free and Phenol-free
OEKO-TEX Class 1, Phthalate Free

LIGHT FASTNESS

4+ (ISO 105 – B02)

CLeAnnInG

Vacuum regularly. Professionally dry clean or wipe clean with a dampcloth
