3D Slat Felt Wall Panels

3D Slat Felt Wall Panels

Sculptural Texture with High-Performance Acoustic Control

The 3D Acoustic Slat Felt Wall Panels blend bold dimensional texture with high-performance sound absorption. Made entirely from ARKETA PET felt panels, both the geometric slats and the backing create a seamless and sustainable solution for effective acoustic control.

Designed with modular flexibility in mind, it can be easily specified for walls, ceilings, or combined applications, bringing style, structure, and improved sound clarity to any interior environment.

PRODUCT CATALOG

Models

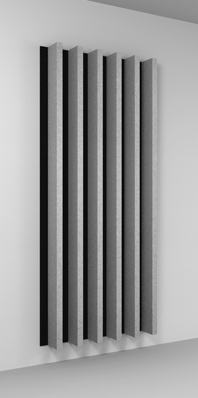

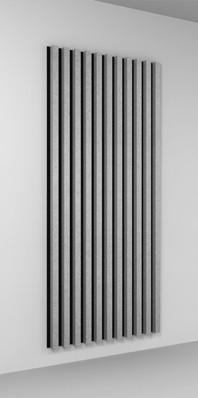

3D Slat Wall Panel 1

3D Slat Wall Panel 2

3D Slat Wall Panel 3

3D Slat Wall Panel 4

Acoustic Properties

Mounting Method

NRC

αw

Directly on the wall

0.30

0.25

50 mm cavity

0.65

0.50

50 mm cavity + 50mm low density felt

1.00

100 mm cavity

0.80

0.85

100 mm cavity + 100mm low density felt

1.00

Custom
Acoustic
Solutions

We offer custom acoustic solutions made from sustainable materials in our local facilities. Choose FeltVibe® as your creative partner.

Specifications

MATERIAL

100% PET, 60% recycled content

THICKNESS & WEIGHT

ARKETA: 9mm (±0.5mm) 2000 g/m² (±10%)
ARKETA: 12mm (±0.5mm) 2400 g/m² (±10%)
ICHOS: 9mm (±0.5mm) 2000 g/m² + 200 g/m² (± 10%)
ICHOS: 12mm (±0.5mm) 2400 g/m² + 200 g/m² (± 10%)

ACOUSTIC PERFORMANCE

NRC: 0.45 (12mm) (no air gap)
NRC: 0.85 (12mm) (20 cm air gap)
NRC: 0.85 (18mm) (20cm air gap)
NRC: 0.90 (24mm) (20cm air gap)

FIRE TEST DATA

EN 1021 – 1 (cigarette)
EN 13501-1 (SBI) Adhered Class B-s1,d0

ENVIRONMENT

VOC emission formaldehyde free, Phenol-free, OEKO-TEX Class 1, Phthalate Free

LIGHT FASTNESS GRADE

4+ (ISO 105 – B02)

CARE & MAINTENANCE

Vacuum regularly. Professionally dry clean or wipe clean with a damp cloth
