3D Grid Ceiling Panel

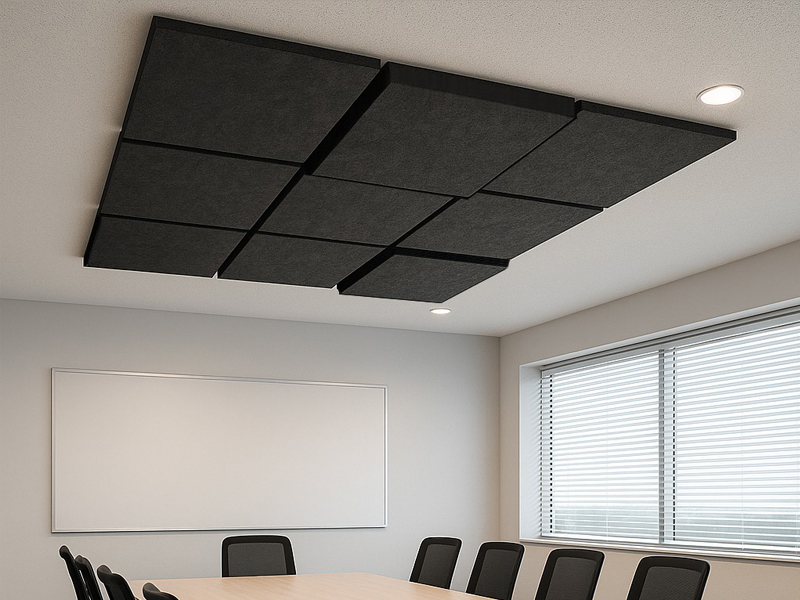

3D Grid Ceiling Panel – A Perfect Balance of Form and Function
The 3D Grid Ceiling Panels elevate both performance and aesthetics-delivering a refined balance of innovative design and functional excellence.
Offered in multiple depths and modular configurations, these panels enable full customization, allowing you to tailor your acoustic environment to meet any design intent. Whether the priority is advanced sound control or a striking architectural expression, the system offers outstanding results.
Designed for effortless compatibility with standard T-bar ceiling grids, the Modular 3D Grid Ceiling Tiles ensure a clean, efficient installation process, making them a preferred choice for architects, designers, and contractors alike. With a Noise Reduction Coefficient (NRC) ranging from 0.85 to 1.00, depending on drop height, these tiles deliver superior acoustic performance minimizing reverberation and enhancing clarity across a wide range of interior spaces.
Product Sheet
3D Grid Ceiling Models
Modul 1
Modul 2
Modul 3
Modul 4
Modul 5
Modul 6
Acoustic Properties
Mounting Method
NRC
αw
Directly on the wall
0.30
0.25
50 mm cavity
0.65
0.50
50 mm cavity + 50mm low density felt
1.00
1.00
100 mm cavity
0.80
0.85
100 mm cavity + 100mm low density felt
1.00
1.00
NRC= Noise reduction coefficent
αw= Sound absorption coefficent
Custom
Acoustic
Solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose Felt Vibe as your new creative partner.
Specifications
COMPOSITION
60% Recyled Polyester (PET) (100% Pes)
ThIckness & WeIght
ARKETA: 9mm (±0.5mm) 2000 g/m² (±10)
ICHOS: 9mm (±0.5mm) 1800 g/m² + 200 g/m² (±10)
ACoUStIC
NRC: 0.85 – 1.00
FIre retArDAnt
EN 1021 – 1 (cigarette)
EN 13501-1 (SBI) Adhered Class B-s1,d0
enVIronment
Non VOCs emission formaldehyde free and Phenol-free
OEKO-TEX Class 1, Phthalate Free
LIGHt FAStneSS
4+ (ISO 105 – B02)
CLeAnnInG
Vacuum regularly. Professionally dry clean or wipe clean with a dampcloth
Available Colors
ARKETA Basic | PET Felt Collections (Base Material)
Arketa R-1 Camel
Arketa R-2 Caramel
Arketa R-3 Tangerine
Arketa R-4 Warm Red
Arketa R-5 Forest Green
Arketa R-6 Cobalt Blue
Arketa R-7 Charcoal Grey
Arketa R-8 Lawn Green
Arketa R-9 White
Arketa R-10 Light Grey
Arketa R-11 Dark Grey
Arketa R-12 Black
Arketa R-13 Misty Black
ICHOS Heathered | PET Felt Collections
ICHOS | K-001
ICHOS | K-002
ICHOS | K-003
ICHOS | K-004
ICHOS | K-005
ICHOS | K-006
ICHOS | K-007
ICHOS | K-008
ICHOS | K-009
ICHOS | K-010
ICHOS | K-011
ICHOS | K-012
ICHOS | K-013
ICHOS | K-014
ICHOS | K-015
ICHOS | K-016
ICHOS | K-017
ICHOS | K-018
ICHOS | K-019
ICHOS | K-020
ICHOS | K-021
ICHOS | K-022
ICHOS | K-023
ICHOS | K-024
ICHOS | K-025
ICHOS | K-026
ICHOS | K-027
ICHOS | K-028
ICHOS | K-029
ICHOS | K-030
ICHOS | K-031
ICHOS | K-032
ICHOS Flat | PET Felt Collections
ICHOS | D-001
ICHOS | D-002
ICHOS | D-003
ICHOS | D-004
ICHOS | D-005
ICHOS | D-006
ICHOS | D-007
ICHOS | D-008
ICHOS | D-009
ICHOS | D-010
ICHOS | D-011
ICHOS | D-012
ICHOS | D-013
ICHOS | D-014
ICHOS | D-015
ICHOS | D-016
ICHOS | D-017
ICHOS | D-018
ICHOS | D-019
ICHOS | D-020
ICHOS | D-021
ICHOS | D-022
ICHOS | D-023
ICHOS | D-024
ICHOS | D-025
ICHOS | D-026
ICHOS | D-027
ICHOS | D-028
ICHOS | D-029
ICHOS | D-030
ICHOS | D-031
ICHOS | D-032
