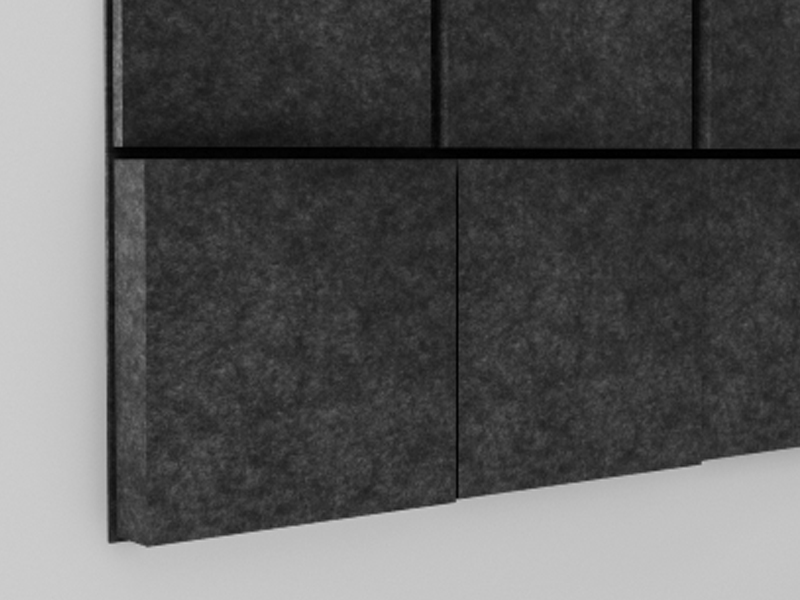

3D Grid Wall Panel – Acoustic Performance with Architectural Elegance

Expertly engineered for both visual and acoustic impact, 3D Grid Wall Panel seamlessly fuse modern design with high-performance functionality.

Offered in a range of depths and configurations, these tiles provide a fully customizable solution to meet your specific acoustic and design goals—whether you’re aiming for superior sound absorption or a bold, architectural statement.

With a Noise Reduction Coefficient (NRC) ranging from 0.7 to 1.0 depending on tile height, 3D Grid Wall Panel effectively reduce reverberation and improve speech clarity, making them ideal for offices, educational spaces, hospitality settings, and beyond.

Product Sheet

3D Grid Wall Panel Models

Modul 1

Modul 2

Modul 3

Acoustic Properties

Mounting Method

NRC

αw

Directly on the wall

0.30

0.25

50 mm cavity

0.65

0.50

50 mm cavity + 50mm low density felt

1.00

100 mm cavity

0.80

0.85

100 mm cavity + 100mm low density felt

1.00

NRC= Noise reduction coefficent

αw= Sound absorption coefficent

Custom
Acoustic
Solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose Felt Vibe as your new creative partner.

Specifications

COMPOSITION

ARKETA: 60% Recyled Polyester (PET) (100% Pes)
ARKETA ECOCO: 100% Recyled Polyester (PET)

ThIckness & WeIght

9mm (±0.5mm) 1100 g/m² – 2000 g/m² (±10)
12mm (±0.5mm) 2400 g/m² (±10%)
ICHOS: 9mm ( ±0.5mm) 1600 g/m² + 200 g/m² (±10%)
ICHOS: 12mm ( ±0.5mm) 1800 g/m² + 200 g/m² (±10%)

ACoUStIC

NRC: 0.30 (9mm) (no air gap)
NRC: 0.45 (12mm) (no air gap)
NRC: 0.85 (12mm) (20 cm air gap)

FIre retArDAnt

EN 1021 – 1 (cigarette)
EN 13501-1 (SBI) Adhered Class B-s1,d0

enVIronment

Non VOCs emission formaldehyde free and Phenol-free
OEKO-TEX Class 1, Phthalate Free

LIGHt FAStneSS

4+ (ISO 105 – B02)

CLeAnnInG

Vacuum regularly. Professionally dry clean or wipe clean with a dampcloth
