3D Modüler Panel

A high performance wallpanel.
Improve the acoustic comfort and decor together.

Each model features recesses, moulded forms, and varying thicknesses. Whether classic or contemporary, these design elements create an acoustic surface that enhances walls and adds a personal touch to any space.

Crafted from 9mm and 12mm PET compact felt boards, the panelling designs incorporate intricate architectural forms composed of layered and overlapping geometric shapes across three alternating levels. The variety in layouts results in distinctive models, each revealing unique patterns when illuminated. These 3D wall structures, with their varying depths and contours, are specifically engineered to improve sound absorption and effectively manage acoustic vibrations within your environment.

Customize the layouts and create decorative compositions that complement the style and architecture of your space. The raised sections and recesses within each model are designed to optimize the panel’s sound absorption capabilities.

Ürün Sayfası

3D Modular Panel Models

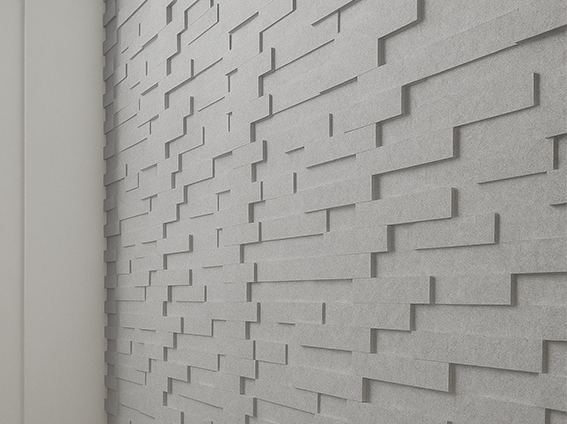

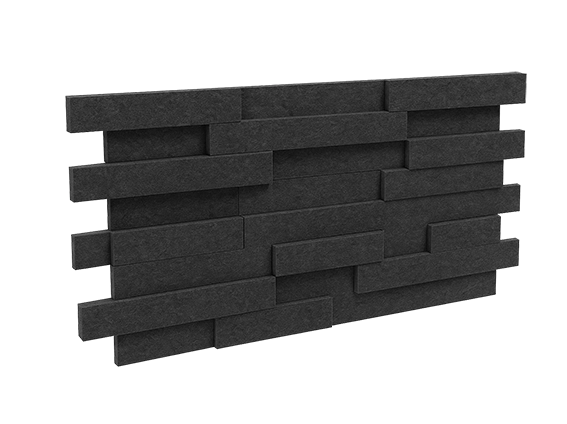

3D Modular Rectangle Model

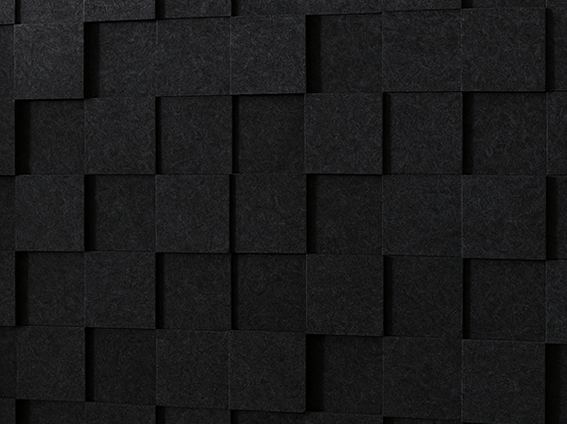

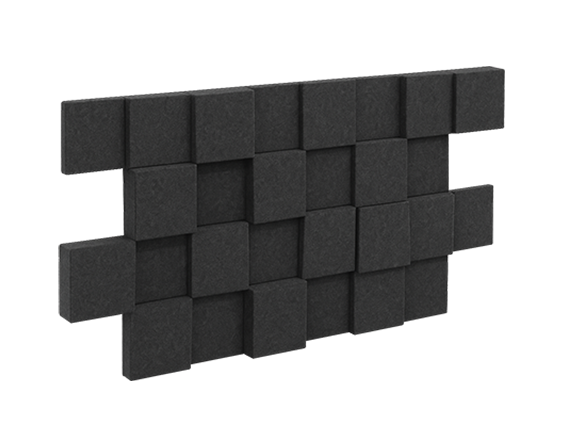

3D Modular Square Model

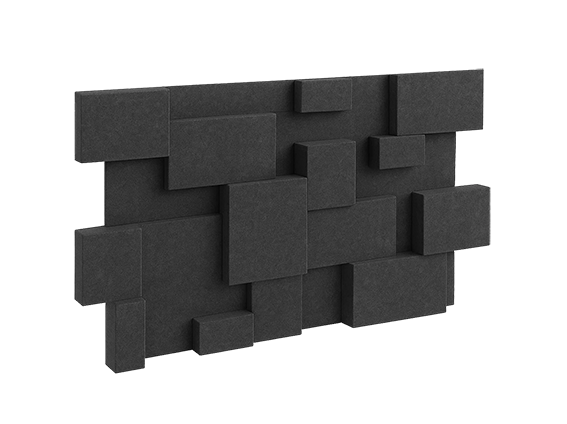

3D Modular Mixed Model

Akustik Özellikler

Montaj Yöntemi

NRC

αw

Doğrudan duvarda



0.30

0.25

50 mm boşluk



0.65

0.50

50 mm boşluk + 50 mm düşük yoğunluklu keçe

1.00

1.00

100 mm boşluk



0.80

0.85

100 mm boşluk + 100 mm düşük yoğunluklu keçe

1.00

1.00

NRC= Gürültü azaltma katsayısı

αw= Ses yutma katsayısı

Özel
Akustik
Çözümler

Yerel üretim tesislerinde sürdürülebilir malzemelerle üretilen özel akustik çözümler sunuyoruz. Yeni yaratıcı ortağınız olarak Felt Vibe'ı seçin.

Teknik Özellikler

KOMPOZİSYON

60% geri dönüştürülmüş PET (100% Polyester)

Güç ve Zayıflık

ARKETA BASIC: 9mm (±0,5mm) 1600 g/m² (±10%)
ARKETA BASIC: 12mm (±0,5mm) 1800 g/m² (±10%)
ARKETA BASIC PLUS: 9mm (±0,5mm) 2000 g/m² (±10%)
ARKETA BASIC PLUS: 12mm (±0,5mm) 2400 g/m² (±10%)
ARKETA BASIC PLUS: 20mm (±0,5mm) 3000 g/m² (±10%)
ARKETA BASIC PLUS: 24mm (±0,5mm) 3700 g/m² (±10%)
ICHOS: 9mm ( ±0,5 mm) 1600 g/m² + 200 g/m² (± 10%)
ICHOS: 12mm ( ±0,5 mm) 1800 g/m² + 200 g/m² (± 10%)

ACoUStIC

9mm NRC: 0.35 (No Air Gap)
12mm NRC: 0.45 (No Air Gap)
20mm NRC: 0.60 (No Air Gap)
24mm NRC: 0.80 (No Air Gap)

FİrMA gErİlErİ

EN 1021 - 1 (sigara)
EN 13501-1 (SBI) Yapıştırılmış Sınıf B-s1,d0

enVIronment

VOC emisyonu olmayan formaldehit içermez ve Fenol içermez
OEKO-TEX Sınıf 1, Ftalat İçermez

IŞIK FASTNELERİ

4+ (ISO 105 - B02)

Bİlİnç

Düzenli olarak süpürün. Profesyonel olarak kuru temizleme yapın veya nemli bir bezle silerek temizleyin

İndirmeler

Üretim Toplantısı

İnStALLAtİon mAnUAL

SoUnD AbSorPtIon teSt DAtA

FİrMA teSt DAtA

KoLoУr FAStNs rePortu

enVIronment

DüZenLeMe vE aRtıŞ

Mevcut Renkler

ARKETA TEMEL | PET Keçe Koleksiyonları (Temel Malzeme)

Arketa Basic Beyaz

Arketa Basic Açık Gri

Arketa Basic Saf Gri

Arketa Basic Koyu Gri

Arketa Basic Siyah

ARKETA BASIC PLUS | PET Keçe Koleksiyonları (Temel Malzeme)

Arketa PLUS | P001

Arketa PLUS | P002

Arketa PLUS | P003

Arketa PLUS | P004

Arketa PLUS | P005

ICHOS Heathered | PET Keçe Koleksiyonları

ICHOS | K-001

ICHOS | K-002

ICHOS | K-003

ICHOS | K-004

ICHOS | K-005

ICHOS | K-006

ICHOS | K-007

ICHOS | K-008

ICHOS | K-009

ICHOS | K-010

ICHOS | K-011

ICHOS | K-012

ICHOS | K-013

ICHOS | K-014

ICHOS | K-015

ICHOS Düz | PET Keçe Koleksiyonları

ICHOS | D-001

ICHOS | D-002

ICHOS | D-003

ICHOS | D-004

ICHOS | D-005

ICHOS | D-006

ICHOS | D-007

ICHOS | D-008

ICHOS | D-009

ICHOS | D-010

ICHOS | D-011

ICHOS | D-012

ICHOS | D-013

ICHOS | D-014

ICHOS | D-015

ICHOS | D-016

ICHOS | D-017

ICHOS | D-018

ICHOS | D-019

ICHOS | D-020
